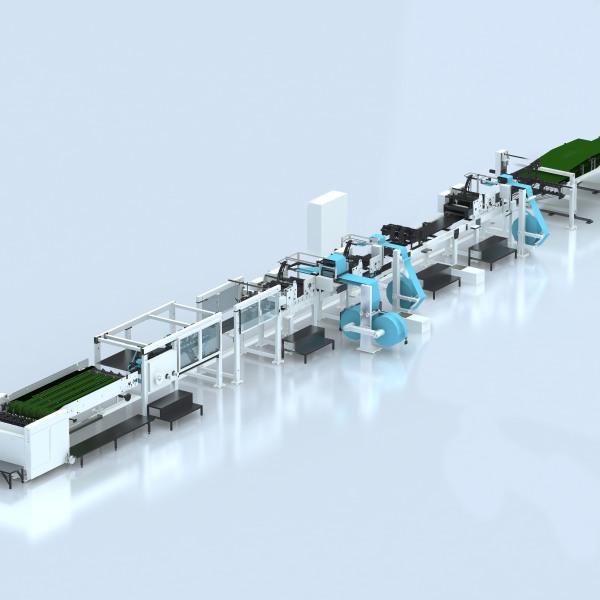

Bottomer Machine FM 2018
New generation of bottomer machine, mainly for heavy chemical or food bags.
Fetures:
- Excellent Stability, High Precision
- Easy Adjustment of Production Parameters
- Versatile Product Specifications
Operating Conditions:
Working time: 20 hours / day
Design working environment temperature: 0 ~ 40 °C
Design working environment humidity: up to 95%
| Bag layers | 2-4 layers of paper |
| Pasting procedure | single side paste |
| Special bag type | super sonic bag, paper-plastic square bottom bag |
| Bag length | 365 ~ 850 mm |
| Bag width | 350 ~ 600 mm |
| Bottom width | 90 ~ 200 mm |
| Max design speed | 100 / min |
| Equipment size | 28.72 x 5.2 x 2.3 m |
| Total power | 30 KW |
