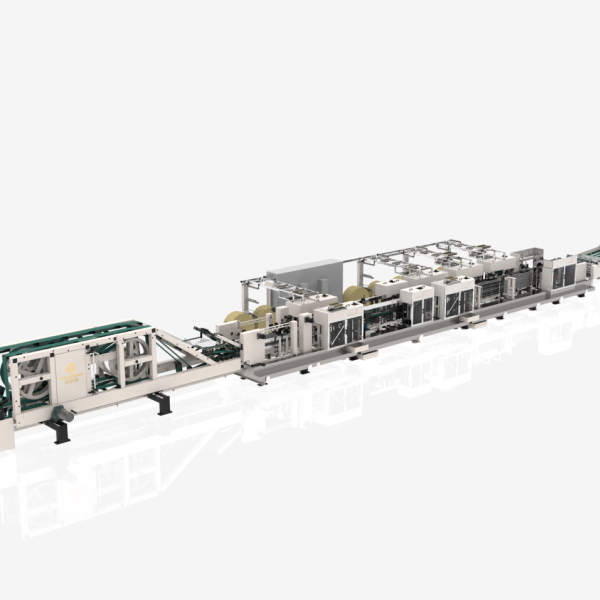

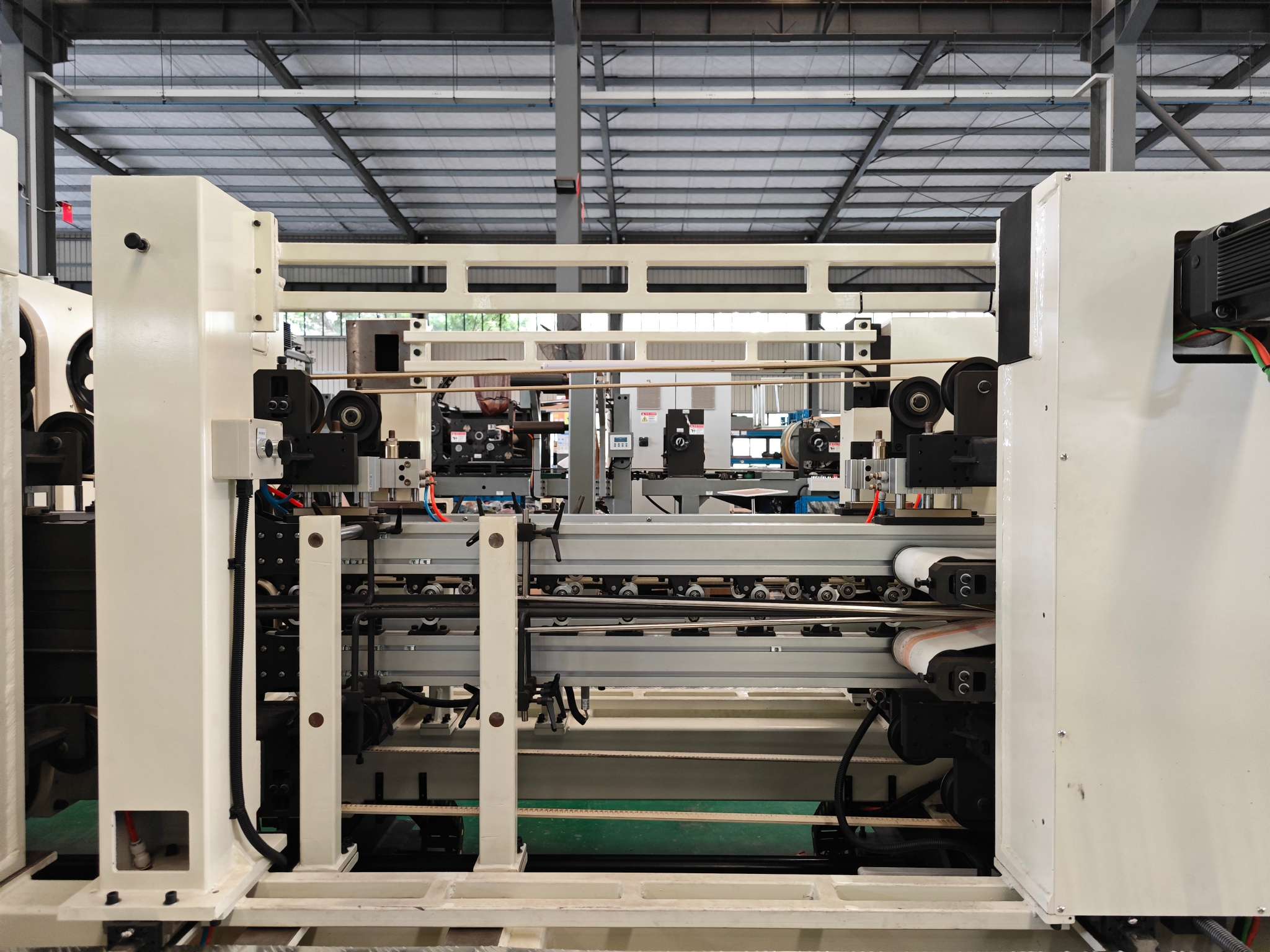

High Speed Bottomer Machine GU8320
Advanced high speed bottomer machine
Features:
- High speed，deisgn max speed 230 bags/min.

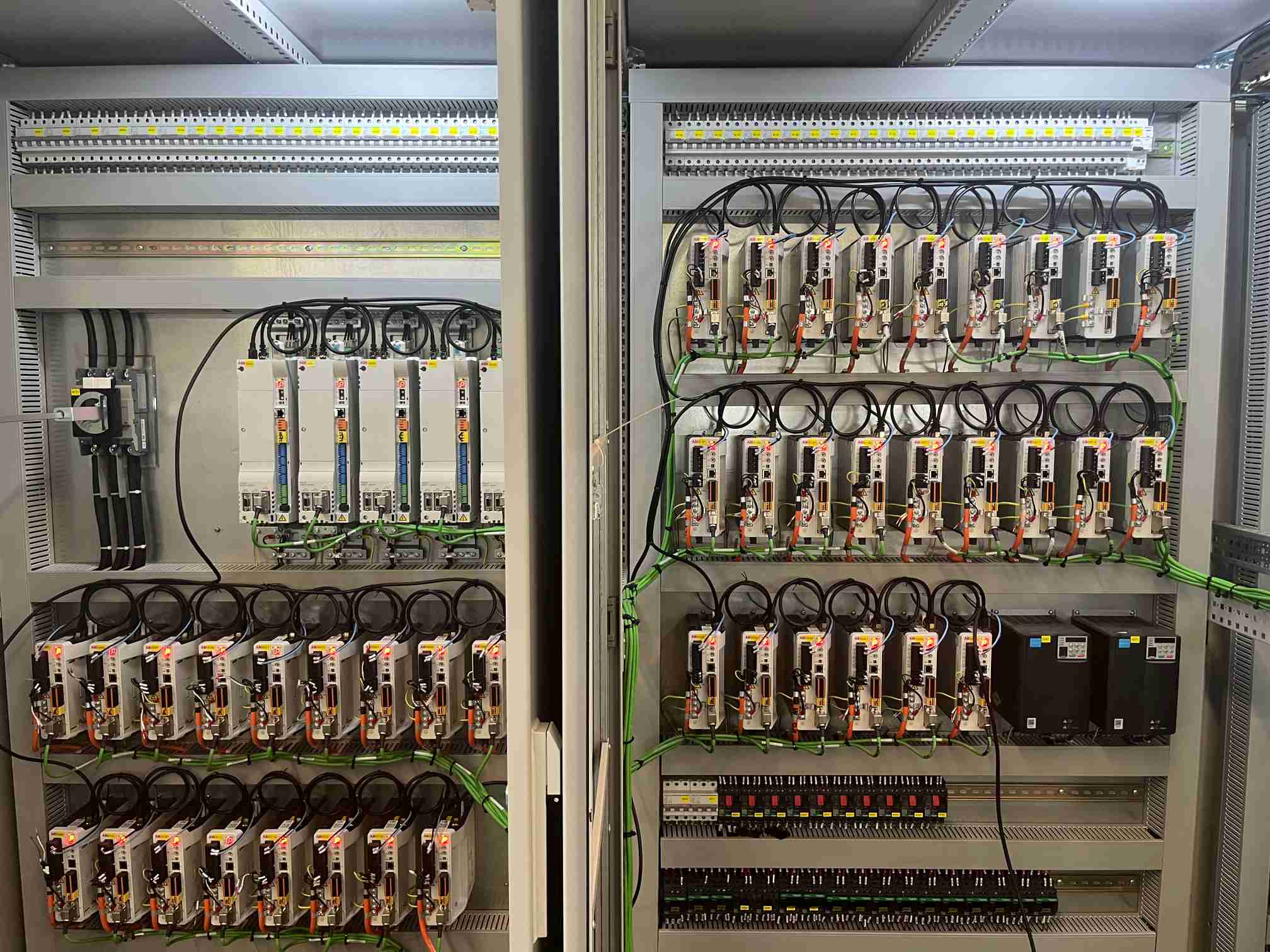

- Advanced electrical system.
- Digital control, equipped with a full servo system.

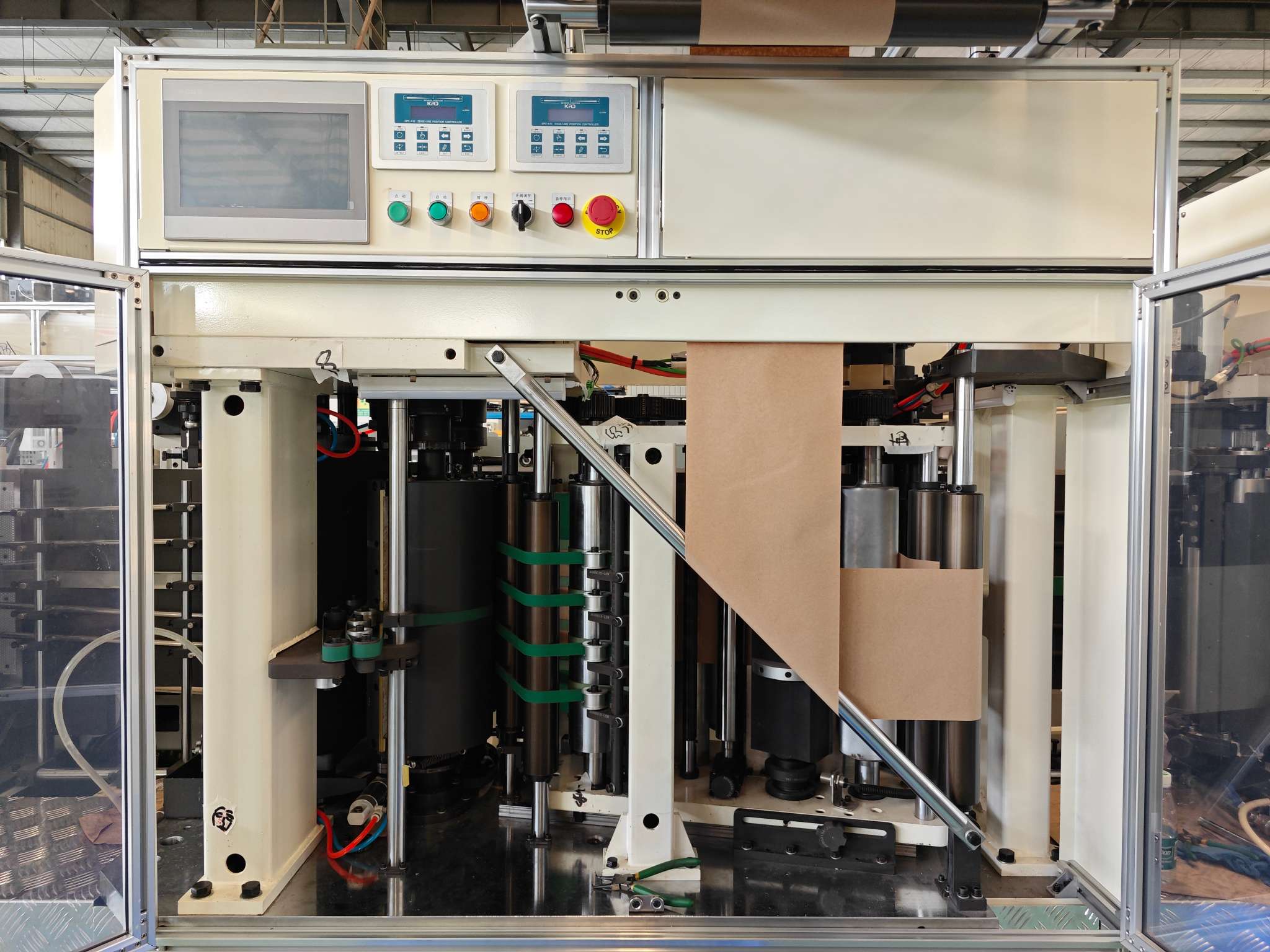

- User-Friendly operation, equipped with an intuitive control panel.
- More valve choices, able to produce single layer valve paper bag, cylindrical external valve paper bag, big-bottom-small-valve paperbag, thumb gap valve bag, super sonic valve bag.
Technical Parameters:
| Material layers | 2-4 layers of paper or plastic film |
| Pasting procedure | double side paste or sigle side |
| Reinforcement type | internal and external(optional configuration) |
| Tube length | 470 ~ 1100 mm |
| Bag width | 330 ~ 600 mm |
| Bottom width | 90 ~ 200 mm |
| Bag center distance | 240 ~ 800 mm |
| Max speed | 230 bags/min |
| Equipment size (High configuration) | 32.63 x 5.1 x 2.52 m |
| Total motor power (High configuration) |
86KW |
\
