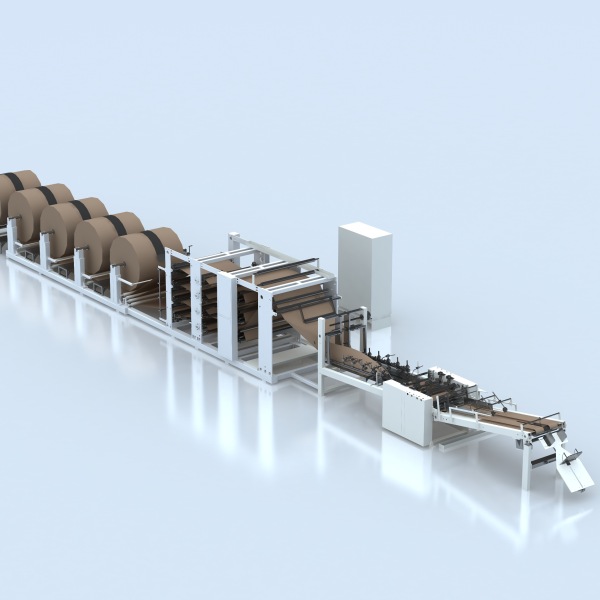

Basic type tube machine: YR 2019
YR2019 valve sack tuber is mainly designed for the production of kraft valve sacks, such as hot-melt glue sealing paper valve bag and ultrasonic sealing paper valve bag. It employs flush cut as the type of cutting, allowing customers to make pasted valve sacks with either graduated or straight-out cut ends.
Specifications:
Paper tube length: 500-1100mm
Paper tube width: 350-620mm
Bottom depth: ≤ 80mm
Max speed: 150 bags/minute
Material layer: 2-3 layers of paper+1 layer of film
Overall size: 18.5 × 2.35 × 2.08 meters
Total power: 23kw
Cutting type: Flush cutting
